Part Number

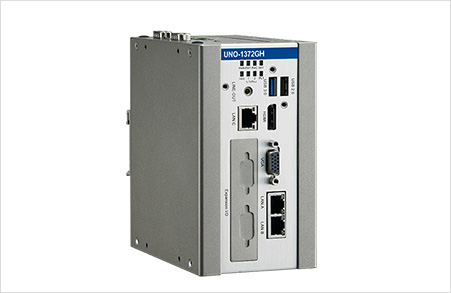

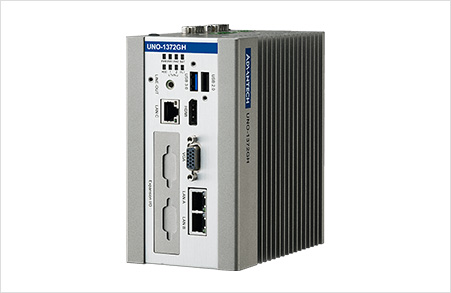

UNO-1372GH-E3AE

General

Certifications

CE, FCC, UL, CCC, BSMI Class I, Division 2, Groups A,B,C,D, Hazardous Location, Temperature code: T4A, Ambient Temperature Range: -20°C - 60°C

Enclosure

Aluminum Housing

Mounting

DIN-rail, Wallmount

Power Consumption

24 W (Typical)

OS Support

Microsoft® Windows 7/8, WES7,WIN10 Ent. LTSB, AdvLinux

Weight (Net)

1.6kg (3.5lbs)

Power Requirement

9~36VDC (Recommend 12/24 VDC)

Dimensions

85 x 139 x 152 mm (3.3" x 5.5" x 6.0")

Form factor

Small Size

System Hardware

Memory

Built-in 4GB DDR3L 1333 MHz (Up to 8GB)

Expansion

2 Full-size mPCIe

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Storage

1 x mSATA slot ; 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)

BIOS

AMI UEFI 128Mbit Flash BIOS

Processor

Intel Atom E3845 1.91GHz, 2MB L2 Cache

System Chip

Intel Atom SoC integrated

Graphics Engine

Intel® HD Graphics

LED Indicators

LEDs for Power, RTC battery, LAN (Active, Status), COM (Tx/Rx), HDD, Programmable LED

Ethernet

LAN A, B: Intel® i210-IT GbE, 802.1Qav, 802.1AS, 802.3az LAN C: Realtek RTL8111E GbE

I/O Interface

Serial Ports

1 x RS-485, Terminal, 50~115.2kbps, 3 x RS-232/485, DB9, 50~115.2kbps

Audio

Line-out

Displays

1 x VGA, supports 1920x1200@60Hz 24bpp, 1 x HDMI 1.4a, supports 1920x1080@60Hz 24bpp

LAN Ports

3 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

USB

3 x USB Ports (2 x USB2.0, 1 x USB 3.0)

Isolated DI/O

4-ch digital input, 4-ch digital output (2500 VDC)

Power Connector

1 x 4 Pins, Terminal Block to support dual power input

Environment

Relative Humidity

95% RH @ 40°C, non-condensing

Ingress Protection

IP40

Shock Protection

Operating, IEC 60068-2-27, 50G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 1Grms, random, 5 ~ 500Hz, 1 hr/axis

Operating Temperature

- 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow (Industry SSD)

Storage Temperature

-40 ~ 85°C ( -40 ~ 185°F)
