產品 > 研華 > 嵌入式電腦 > 無風扇嵌入式工控機 > 豐富I/O ARK-2000系列

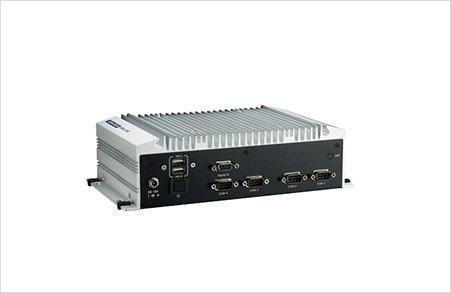

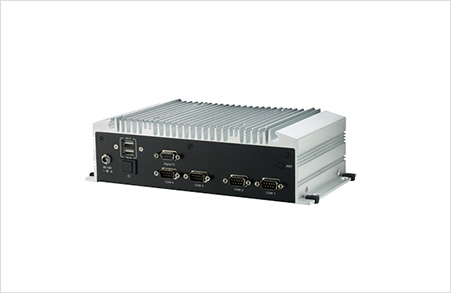

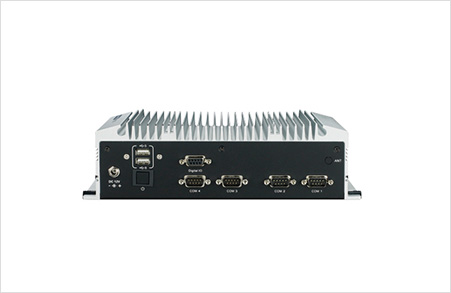

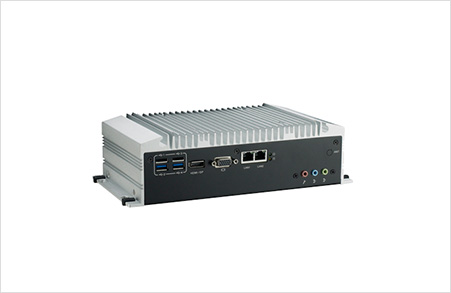

ARK-2150L

Intel ?Core? i3和i7處理器+Intel QM77 PCH
1×DDR3/DDR3L，SO-DIMM最高支持高達8GB
支持Direct X11，OpenGL3.1，OpenCL1.1，
獨立雙顯：VGA+HDMI/DisplayPort
支持Intel AMT8.0
最高支持2×GbE，2×USB 3.0，4×USB 2.0和4×COM接口
支持1個內置mSATA插槽和1個2.5‘HDD驅動器槽
鎖固型DC接口
支持iManager,SUSIAccess和嵌入式軟件APIs
IP40防護等級

產品資料

規格

Part Number	ARK-2150L-S4A1E	ARK-2150L-S6A1E	ARK-2150L-S7A1E	ARK-2150LS-S7A1E
Processor
CPU	Intel Celeron 1047UE	Intel ULV 3rd Gen Core i3 3217UE	Intel ULV 3rd Gen Core i7 3517UE	Intel ULV 3rd Gen Core i7 3517UE
Core Number	2	2	2	2
Frequency	1.4 GHz	1.6 GHz	1.7 GHz (up to 2.8GHz)	1.7 GHz (up to 2.8GHz)
L3 Cache	2 MB	3 MB	4 MB	4 MB
Chipset	Intel QM77	Intel QM77	Intel QM77	Intel QM77
BIOS	AMI EFI 64Mbit	AMI EFI 64Mbit	AMI EFI 64Mbit	AMI EFI 64Mbit
Memory
Technology	DDR3 1600MHz,DDR3L 1333 MHz	DDR3 1600MHz,DDR3L 1333 MHz	DDR3 1600MHz,DDR3L 1333 MHz	DDR3 1600MHz,DDR3L 1333 MHz
Max. Capacity	8 GB	8 GB	8 GB	Default 4GB, max. up to 8GB
Socket	1 x 204-pin SODIMM	1 x 204-pin SODIMM	1 x 204-pin SODIMM	1 x 204-pin SODIMM
Graphics
Chipset	Intel QM77 Integrated GFX Gen 7	Intel QM77 Integrated GFX Gen 7	Intel QM77 Integrated GFX Gen 7	Intel QM77 Integrated GFX Gen 7
Graphic Engine	DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1	DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1	DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1	DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1
VGA	Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz	Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz	Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz	Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz
HDMI	Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI	Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI	Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI	Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI
Dual Display	Yes, VGA + HDMI or VGA + DisplayPort	Yes, VGA + HDMI or VGA + DisplayPort	Yes, VGA + HDMI or VGA + DisplayPort	Yes, VGA + HDMI or VGA + DisplayPort
Ethernet
LAN1	10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan	10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan	10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan	10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan
LAN2	10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan	10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan	10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan	10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
Audio
Interface	Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in	Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in	Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in	Realtek ALC892, High Definition Audio. Line-out,Mic-in,Line-in
I/O Interface
Serial Port	2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control	2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control	2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control	2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control
USB Interface	2 x USB 3.0 ports and 4 x USB 2.0 ports	2 x USB 3.0 ports and 4 x USB 2.0 ports	2 x USB 3.0 ports and 4 x USB 2.0 ports	2 x USB 3.0 ports and 4 x USB 2.0 ports
Other
Digital IO	8-bits programmable general purpose input/output	8-bits programmable general purpose input/output	8-bits programmable general purpose input/output	8-bits programmable general purpose input/output
Watchdog Timer	255 levels timer interval, setup by software	255 levels timer interval, setup by software	255 levels timer interval, setup by software	255 levels timer interval, setup by software
Expansion
Mini PCIe	2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe	2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe	2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe	2 x Full-size Mini PCIe (One supports mSATA & the other with SIM holder); 1 x Half-size Mini PCIe
Storage
HDD	Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)	Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)	Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)	Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)
SSD	Supports one internal mSATA socket	Supports one internal mSATA socket	Supports one internal mSATA socket	Supports one internal mSATA socket
Software Support
Microsoft Windows	Windows 7, Windows 7 Embedded, XP Professional, XP Embedded	Windows 7, Windows 7 Embedded, XP Professional, XP Embedded	Windows 7, Windows 7 Embedded, XP Professional, XP Embedded	WES7E 64 bit built-in ENG/JP/TC/SC
Linux	Ubuntu 12.04	Ubuntu 12.04	Ubuntu 12.04	Ubuntu 12.04
Power
Power Type	AT/ATX	AT/ATX	AT/ATX	AT/ATX
Input Voltage	12 VDC, ± 10%	12 VDC, ± 10%	12 VDC, ± 10%	12 VDC, ± 10%
Power Adaptor	AC to DC, DC12V/5A, 60 W (Optional)	AC to DC, DC12V/5A, 60 W (Optional)	AC to DC, DC12V/5A, 60 W (Optional)	AC to DC, DC12V/5A, 60 W (Optional)
Consumption	Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)	Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)	Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)	Typical 9.4 W, Max. 24.96 W (with Intel Core i7 3517UE CPU and 2 GB memory)
Mechanical
Construction	Aluminum housing	Aluminum housing	Aluminum housing	Aluminum housing
Mounting	Din-Rail mounting, Desk/wall-mounting, VESA mounting	Din-Rail mounting, Desk/wall-mounting, VESA mounting	Din-Rail mounting, Desk/wall-mounting, VESA mounting	Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions	264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")	264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")	264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")	264.5 x 75.1 x 133.0 mm (10.41" x 2.96" x 5.24")
Weight	2.3 kg (5.07 lb)	2.3 kg (5.07 lb)	2.3 kg (5.07 lb)	2.3 kg (5.07 lb)
Environment
Operational Temperature	With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow	With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow	With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow	0 ~ 45° C
Storage Temperature	-40 ~ 85° C (-40 ~ 185° F)	-40 ~ 85° C (-40 ~ 185° F)	-40 ~ 85° C (-40 ~ 185° F)	-40 ~ 85° C (-40 ~ 185° F)
Relative Humidity	95% @ 40° C (non-condensing)	95% @ 40° C (non-condensing)	95% @ 40° C (non-condensing)	95% @ 40° C (non-condensing)
Vibration during Operation	With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.	With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.	With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.	With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation	With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration	With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration	With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration	With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
Certification
EMC	CE, FCC Class A, CCC, BSMI	CE, FCC Class A, CCC, BSMI	CE, FCC Class A, CCC, BSMI	CE, FCC Class A, CCC, BSMI
Safety Certifications	UL, CCC, BSMI	UL, CCC, BSMI	UL, CCC, BSMI	UL, CCC, BSMI
