Part Number

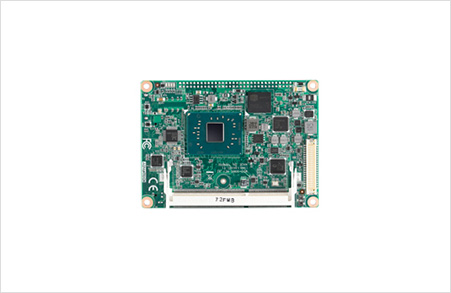

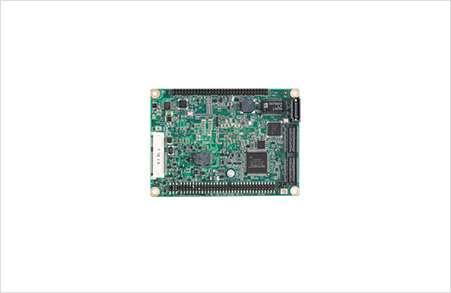

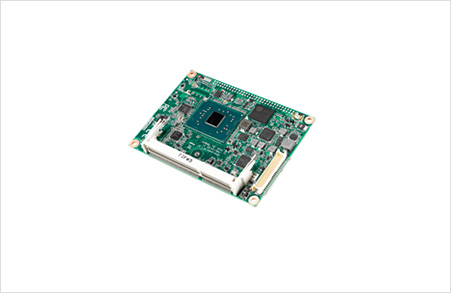

MIO-3360N-S1A1E

MIO-3360N-S2A1E

Processor

CPU

Intel Celeron N3350

Intel Pentium N4200

Core Number

2

4

Frequency

1.1 GHz

1.1 GHz

L2 Cache

2 MB

2 MB

Max Turbo Frequency

2.40 GHz

2.50 GHz

Chipset

Intel Celeron / Atom SoC processor integrated

Intel Celeron / Atom SoC processor integrated

BIOS

AMI EFI 64 Mbit

AMI EFI 64 Mbit

Memory

Technology

DDR3L 1866 MHz

DDR3L 1866 MHz

Max. Capacity

8 GB

8 GB

Socket

1 x 204-pin SODIMM (Support 1.35V DDR3L)

1 x 204-pin SODIMM (Support 1.35V DDR3L)

Display

Chipset

Intel® Celeron/Atom SoC integrated

Intel® Celeron/Atom SoC integrated

LVDS

Supports dual channel 24-bit LVDS, Resolution: 1440 x 900 at 60Hz

Supports dual channel 24-bit LVDS, Resolution: 1440 x 900 at 60Hz

VGA

Up to 1920 x 1200 at 60 Hz

Up to 1920 x 1200 at 60 Hz

Dual Display

Yes (LVDS+VGA or LVDS+DP/HDMI or VGA+DP/HDMI)

Yes (LVDS+VGA or LVDS+DP/HDMI or VGA+DP/HDMI)

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

Intel i210

Intel i210

Audio

Chipset

Realtek, High Definition Audio (HD), Line-in, Line out, Mic-in

Realtek, High Definition Audio (HD), Line-in, Line out, Mic-in

Watchdog Timer

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds

Storage

mSATA

1 (Supports mSATA or USB interface module or full size miniPCIe, selected by BIOS, default is mSATA)

1 (Supports mSATA or USB interface module or full size miniPCIe, selected by BIOS, default is mSATA)

SATA

1, up to 6Gb/s (600MB/s)

1, up to 6Gb/s (600MB/s)

eMMC

32GB

32GB

Expansion

Mini PCI Express

1 x Full-size

1 x Full-size

MIOe

SMBus, USB3.0, LPC, 2 x PCIe x1, Line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power,Power On, Reset

SMBus, USB3.0, LPC, 2 x PCIe x1, Line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power,Power On, Reset

64pin connecter A

12V DC input, Inverter, VGA, 2 x USB2.0, 1GbE w/ LED

12V DC input, Inverter, VGA, 2 x USB2.0, 1GbE w/ LED

64pin connecter B

SMBus, I2C, Power/Reset button, HDD/Power LED, 2 x USB2.0, 8-bit GPIO, HD Audio Line-in, Line out,Mic-in, 2 x RS-232/422/485

SMBus, I2C, Power/Reset button, HDD/Power LED, 2 x USB2.0, 8-bit GPIO, HD Audio Line-in, Line out,Mic-in, 2 x RS-232/422/485

Power

Power Type

Single 12V DC power input (Supports DC power hot plug)

Single 12V DC power input (Supports DC power hot plug)

Power Supply Voltage

Supports single 12V input, ± 10%

Supports single 12V input, ± 10%

Total peripheral power supply output

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module

Power Consumption (Typical)

TBD

0.37 @ 12V (4.48W)

Power Consumption (Max)

TBD

1.44 @ 12V (17.38W)

Power Management

ACPI

ACPI

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")

Weight

0.39 kg (0.85 lb), weight of total package

0.39 kg (0.85 lb), weight of total package

Total Height

25.8 mm (including heatsink)

25.8 mm (including heatsink)
