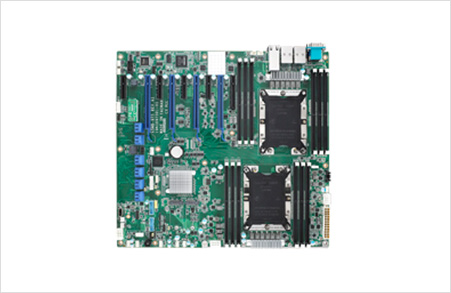

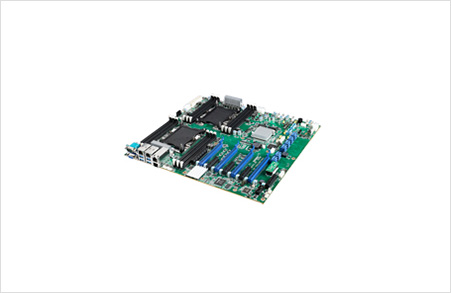

Part Number

ASMB-975-00A1

ASMB-975I-00A1

ASMB-975T2-00A1

Processor System

CPU

Intel® Xeon® Scalable

Intel® Xeon® Scalable

Intel® Xeon® Scalable

CPU TDP

Up to 205W

Up to 205W

Up to 205W

Frequency

Up to 3.7 GHz

Up to 3.7 GHz

Up to 3.7 GHz

Core Number

Up to 28

Up to 28

Up to 28

L3 Cache

38.5 MB

38.5 MB

38.5 MB

BIOS

AMI SPI 256 Mbit

AMI SPI 256 Mbit

AMI SPI 256 Mbit

Chipset

Intel C621

Intel C621

Intel C621

DMI

Gen3 x4

Gen3 x4

Gen3 x4

Integrated Graphics

-

-

-

UPI

Up to 10.4 GT/s

Up to 10.4 GT/s

Up to 10.4 GT/s

Memory

Technology

DDR4 2666 MHz

DDR4 2666 MHz

-

Capacity

Up to 768 GB

Up to 768 GB

Up to 768 GB

ECC Support

Yes

Yes

Yes

Socket

12 x 288-pin DIMM

12 x 288-pin DIMM

12 x 288-pin DIMM

REG Support

Yes

Yes

Yes

Display

Controller

ASPEED AST2510

ASPEED AST2500

ASPEED AST2500

Display Interface

VGA: Up to 1920 x 1200

VGA: Up to 1920 x 1200

VGA: Up to 1920 x 1200

Graphic Memory

Onboard memory 64MB

Onboard memory 64MB

Onboard memory 64MB

Multiple Display

-

-

-

Expansion Interface

PCI Express x 16

4 (Gen3)

4 (Gen3)

4 (Gen3)

PCI Express x 4

4 (Gen3)

4 (Gen3)

4 (Gen3)

PCI Express x 8

1 (Gen3)

1 (Gen3)

1 (Gen3)

PCI

-

-

-

PCI Express x 1

-

-

-

LPC

1

1

1

PME

-

-

-

SMBus

1

1

1

Ethernet

Controller

LAN1: Intel I210; LAN2: Intel I210

LAN1: Intel I210AT LAN2: Intel I210AT

LAN1: Intel I210AT; LAN2: Intel I210AT; LAN3/4: Intel X557-AT2

Speed

10/100/1000 Mbps

10/100/1000 Mbps

10/100/1000 Mbps & 10G Base-T

Connector

2 x RJ45

2 x RJ45

2 x RJ45

WatchDog Timer

Output

System Reset

System Reset

System Reset

Interval

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

I/O

SATA

14 x SATAIII (SATA0-SATA7 & SSATA0-SSATA5 support RAID 0,1,10 & 5 )

14 x SATAIII (SATA0-SATA7 & SSATA0-SSATA5 support RAID 0,1,10 & 5 )

14 x SATAIII (SATA0-SATA7 & SSATA0-SSATA5 support RAID 0,1,10 & 5 )

SAS Port

-

-

-

SAS controller

-

-

-

USB3.0

8

8

8

USB2.0

3 USB 2.0 (1 Type-A USB2.0 port)

3 USB 2.0 (1 Type-A USB2.0 port)

3 USB 2.0 (1 Type-A USB2.0 port)

GPIO

8-bit / -

8-bit / -

8-bit / -

LPT

-

-

-

COM Port

1 (1 x RS232)

1 (1 x RS232)

1 (1 x RS232)

PS/2 Keyboard/Mouse

1

1

1

SPDIF

-

-

-

System Fan

6

6

6

Rear I/O Interface

Display

-

-

-

LAN

2

2

4

USB3.0

4

4

4

USB2.0

-

-

-

COM

1

1

1

PS/2

-

-

-

DVI

-

-

-

Ethernet

2

2

2

VGA

1

1

1

Power Requirement

Voltage

+12V/+5V/+3.3V/+5Vsb/-12V

+12V/+5V/+3.3V/+5Vsb/-12V

+12V/+5V/+3.3V/+5Vsb/-12V

Current

0.09A/6.83A/1.37A/0.14A/0.03A

0.09A/6.83A/1.37A/0.14A/0.03A

0.09A/6.83A/1.37A/0.14A/0.03A

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Non-Operating Vibration

3.5 Grms

3.5 Grms

3.5 Grms

Physical Characteristics

Dimensions (LxW)

358 .1 mm x 330 mm (14.1”x 13”)

358 .1 mm x 330 mm (14.1”x 13”)

358 .1 mm x 330 mm (14.1”x 13”)

Weight

1.5kg

1.5kg

1.5kg

Certification

EMC

CE, FCC

CE, FCC

-

Management Solution

Software

IPMI 2.0

IPMI 2.0

IPMI 2.0

Out of band remote management

Intel I210 share NIC

Intel I210 share NIC

Intel I210 share NIC
