Part Number

ASMB-815-00A1E

ASMB-815I-00A1E

ASMB-815T2-00A1E

Processor System

UPI

Up to 10.4 GT/s

Up to 10.4 GT/s

Up to 10.4 GT/s

CPU

Intel® Xeon® Scalable

Intel® Xeon® Scalable

Intel® Xeon® Scalable

CPU TDP

Up to 205W

Up to 205W

Up to 205W

Frequency

Up to 3.6GHz

Up to 3.6GHz

Up to 3.6GHz

Core Number

Up to 28

Up to 28

Up to 28

L3 Cache

38.5 MB

38.5 MB

38.5 MB

BIOS

AMI SPI 256 Mbit

AMI SPI 256 Mbit

AMI SPI 256 Mbit

Chipset

Intel C621

Intel C621

Intel C621

Integrated Graphics

-

-

-

DMI

Gen3 x4

Gen3 x4

Gen3 x4

QPI

10.4 GT/s

10.4 GT/s

10.4 GT/s

Form Factor

Form Factor

ATX

ATX

ATX

Memory

Technology

DDR4 ECC-REG 2133/2400/2666

Dual Channel DDR4 ECC/Non-ECC 2133/2400/2666 MHz

DDR4 ECC-REG 2133/2400/2666

Capacity

Up to 384 GB

Up to 384 GB

Up to 384 GB

ECC Support

Yes

Yes

Yes

Socket

6 x 288-pin DIMM

6 x 288-pin DIMM

6 x 288-pin DIMM

REG Support

YES

YES

YES

Display

Controller

ASPEED AST2510

ASPEED AST2510

ASPEED AST2510

Graphic Memory

Onboard memory 64MB

Onboard memory 64MB

Onboard memory 64MB

Multiple Display

-

-

-

Display Interface

VGA: Up to 1920 x 1200

VGA: Up to 1920 x 1200

VGA: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

2 (or 4 PCIe x8)

2 (or 4 PCIe x8)

2 (or 4 PCIe x8)

PCI Express x 8

2 (Gen3)

2 (Gen3)

2 (Gen3)

PCI Express x 4

1

1

1

PCI Express x 1

1

1

1

PCI

-

-

-

LPC

1

1

1

SMBus

1

1

1

PME

-

-

-

Ethernet

Controller

LAN1: Intel I210AT LAN2: Intel I210AT

LAN1: Intel I210AT; LAN2: Intel I210AT; LAN5: Realtek 8201EL

LAN1: Intel I210AT; LAN2: Intel I210AT; LAN3/4: Intel X557-AT2;LAN5: Realtek 8201EL

Speed

10/100/1000 Mbps

10/100/1000 Mbps

10/100/1000 Mbps & 10G Base-T

Connector

2 x RJ45

3 x RJ45

5 x RJ45

WatchDog Timer

Output

System Reset

System Reset

System Reset

Interval

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

I/O

SATA

8 x SATAIII (RAID 0,1,5,10)

8 x SATAIII (RAID 0,1,5,10)

8 x SATAIII (RAID 0,1,5,10)

SAS Port

-

-

-

SAS controller

-

-

-

USB3.0

2

2

2

USB2.0

5 (1 Type-A)

5 (1 Type-A)

5 (1 Type-A)

GPIO

8-bit

8-bit

8-bit

LPT

-

-

-

COM Port

1 x RS232

1 x RS232

1 x RS232

PS/2 Keyboard/Mouse

1

1

1

SPDIF

-

-

-

System Fan

5

5

5

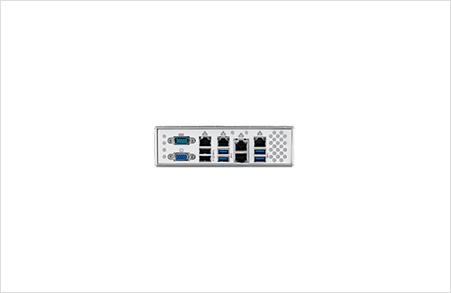

Rear I/O Interface

Display

-

-

-

LAN

2

3 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function)

5 (One is for remote IPMI/iKVM consloe Only and doesn't have LAN function)

USB3.0

4

4

4

USB2.0

2

2

2

COM

1

1

1

PS/2

-

-

-

DVI

-

-

-

Ethernet

5

5

5

VGA

1

1

1

Power Requirement

Voltage

+12V/+5V/+3.3V/+5Vsb/-12V/12V_8P

+12V/+5V/+3.3V/+5Vsb/-12V/12V_8P

+12V/+5V/+3.3V/+5Vsb/-12V/12V_8P

Current

2.77A/7.01A/0.58A/0.13A/0.06A/17.58A

2.77A/7.01A/0.58A/0.13A/0.06A/17.58A

2.77A/7.01A/0.58A/0.13A/0.06A/17.58A

Environment

Operating-Temperature

0 ~ 60° C (32 ~ 140° F)

0 ~ 60° C (32 ~ 140° F)

0 ~ 60° C (32 ~ 140° F)

Non-Operational Temperature

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Non-Operating Vibration

3.5 Grms

3.5 Grms

3.5 Grms

Physical Characteristics

Dimensions (LxW)

304.8 x 244 mm (12" x 9.6")

304.8 x 244 mm (12" x 9.6")

304.8 x 244 mm (12" x 9.6")

Weight

0.91 kg

0.91 kg

0.91 kg

Certification

EMC

CE, FCC

CE, FCC

CE, FCC

Management Solution

Software

SUSIAccess(Optional)

IPMI 2.0

IPMI 2.0

Out of band remote management

-

Realtek 8201EL

Realtek 8201EL
