Part Number

ASMB-925-00A1

ASMB-925I-00A1

ASMB-925T2-00A1

Form Factor

Form Factor

EATX

EATX

EATX

Processor System

CPU

Intel® Xeon® Scalable

Intel® Xeon® Scalable

Intel® Xeon® Scalable

CPU TDP

Up to 205W

Up to 205W

Up to 205W

Frequency

Up to 3.6GHz

Up to 3.6GHz

Up to 3.6GHz

Core Number

Up to 28

Up to 28

Up to 28

L3 Cache

38.5 MB

38.5 MB

38.5 MB

BIOS

AMI SPI 256 Mbit

AMI SPI 256 Mbit

AMI SPI 256 Mbit

Chipset

Intel C622

Intel C622

Intel C622

Integrated Graphics

-

-

-

DMI

Gen3 x4

Gen3 x4

Gen3 x4

UPI

10.4 GT/s

10.4 GT/s

10.4 GT/s

Memory

Technology

DDR4 2666 MHz

DDR4 2666 MHz

DDR4 2666 MHz

Capacity

Up to 768 GB

Up to 768 GB

Up to 768 GB

ECC Support

Yes

Yes

Yes

Socket

12 x 288-pin DIMM

12 x 288-pin DIMM

12 x 288-pin DIMM

REG Support

YES

YES

YES

Display

Controller

ASPEED AST2510

ASPEED AST2500

ASPEED AST2500

Graphic Memory

Onboard memory 64MB

Onboard memory 64MB

Onboard memory 64MB

Multiple Display

-

-

-

Display Interface

VGA: Up to 1920 x 1200

VGA: Up to 1920 x 1200

VGA: Up to 1920 x 1200

Expansion Interface

PCI Express x 16

5 (Gen3)

5 (Gen3)

5 (Gen3)

PCI Express x 8

1 (Gen3)

1 (Gen3)

1 (Gen3)

PCI Express x 4

-

-

-

PCI Express x 1

-

-

-

PCI

1

1

1

LPC

1

1

1

SMBus

1

1

1

PME

-

-

-

Ethernet

Controller

LAN1: Intel I210AT LAN2: Intel I210AT

LAN1: Intel I210AT LAN2: Intel I210AT

LAN1: Intel I210AT; LAN2: Intel I210AT; LAN3/4: Intel X557-AT2

Speed

10/100/1000 Mbps

10/100/1000 Mbps

10/100/1000 Mbps

Connector

2 x RJ-45

2 x RJ-45

2 x RJ-45

WatchDog Timer

Output

System Reset

System Reset

System Reset

Interval

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

I/O

SATA

8 x SATAIII (RAID 0,1,5,10)

8 x SATAIII (RAID 0,1,5,10)

8 x SATAIII (RAID 0,1,5,10)

SAS Port

-

-

-

SAS controller

-

-

-

USB3.0

2

2

2

USB2.0

5 (1 Type-A)

5 (1 Type-A)

5 (1 Type-A)

GPIO

8-bit

8-bit

8-bit

LPT

-

-

-

COM Port

1 x RS232

1 x RS232

1 x RS232

PS/2 Keyboard/Mouse

1

1

1

SPDIF

-

-

-

System Fan

5

5

5

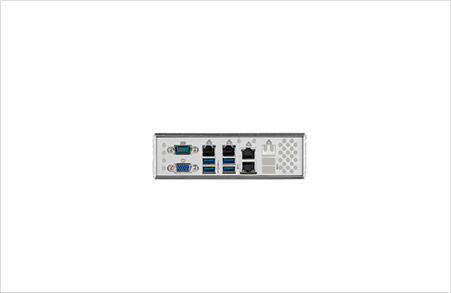

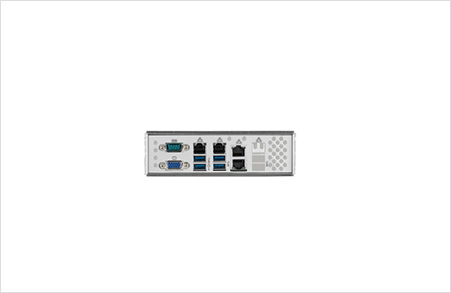

Rear I/O Interface

Display

-

-

-

LAN

2

2

2

USB3.0

4

4

4

USB2.0

-

-

-

COM

1

1

1

PS/2

-

-

-

DVI

-

-

-

Ethernet

2

2

2

VGA

1

1

1

Power Requirement

Voltage

+12V/+5V/+3.3V/+5Vsb/-12V/12V_8P_0/12V_8P_1

+12V/+5V/+3.3V/+5Vsb/-12V/12V_8P_0/12V_8P_1

+12V/+5V/+3.3V/+5Vsb/-12V/12V_8P_0/12V_8P_1

Current

0A/5.19A/1.51A/0.05A/0A/20.58A/20.08A

0A/5.19A/1.51A/0.05A/0A/20.58A/20.08A

0A/5.19A/1.51A/0.05A/0A/20.58A/20.08A

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Non-Operating Vibration

3.5 Grms

3.5 Grms

3.5 Grms

Physical Characteristics

Dimensions (LxW)

304.8 x 330.2 mm (12" x 13")

304.8 x 330.2 mm (12" x 13")

304.8 x 330.2 mm (12" x 13")

Weight

1.5kg

1.5kg

1.5kg

Certification

EMC

CE, FCC

CE, FCC

CE, FCC

Management Solution

Software

SUSIAccess(Optional)

IPMI 2.0

IPMI 2.0

Out of band remote management

-

Intel I210 share NIC

Intel I210 share NIC
