Part Number

IPC-610BP-00XHE

IPC-610BP-30HBE

IPC-610BP-40HBE

IPC-610BP-50HBE

IPC-610MB-00XHE

IPC-610MB-30HBE

IPC-610MB-40HBE

IPC-610MB-50HBE

Form Factor

Form Factor

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

4U Rackmount

Front I/O Interface

USB2.0

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

10 D-sub openings supporting up to 10 COMs with optinal COM cables

PS/2

1

1

1

1

1

1

1

1

Cooling

Air Filter

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

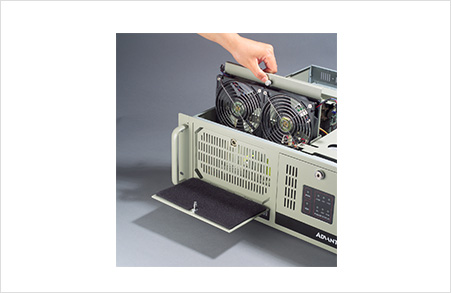

Fan

2 ( 12 cm / 85 CFM )

2 ( 12 cm / 85 CFM )

2 ( 12 cm / 85 CFM )

2 ( 12 cm / 85 CFM )

2 ( 12 cm / 85 CFM )

2 ( 12 cm / 85 CFM )

2 ( 12 cm / 85 CFM )

2 ( 12 cm / 85 CFM )

Environment

Operating-Temperature

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

0 ~ 45

Non-Operational Temperature

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

-20 ~ 60° C (-4 ~ 140° F)

Operating Shock

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

10 G (with 11 ms duration, half sine wave)

Operating Humidity

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

10 ~ 85% @ 40° C, non-condensing

Non-Operating Humidity

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

10 ~ 95% @ 40° C, non-condensing

Operating Vibration (5 ~ 500 Hz)

1 Grms

1 Grms

1 Grms

1 Grms

1 Grms

1 Grms

1 Grms

1 Grms

Non-Operating Vibration (5 ~ 500 Hz)

2 G

2 G

2 G

2 G

2 G

2 G

2 G

2 G

Physical Characteristics

Weight

15 kg ( 33 lb )

15 kg ( 33 lb )

15 kg ( 33 lb )

15 kg ( 33 lb )

15 kg ( 33 lb )

15 kg ( 33 lb )

15 kg ( 33 lb )

15 kg ( 33 lb )

Dimensions (W x H x D)

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

482 x 177 x 479 mm (19" x 7" x 18.9")

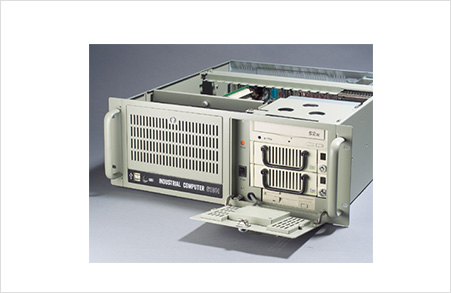

Disk Drive Bay

5.25 External Bay

3

3

3

3

3

3

3

3

3.5" External Bay

1

1

1

1

1

1

1

1

Miscellaneous

LED Indicators

Power, HDD and power voltage status

Power, HDD and power voltage status

Power, HDD and power voltage status

Power, HDD and power voltage status

Power, HDD and power voltage status

Power, HDD and power voltage status

Power, HDD and power voltage status

Power, HDD and power voltage status

Power Supply

Power Supply

-

300W (Single)

400W (Single)

500W (Single)

-

300W (Single)

400W (Single)

500W (Single)
