Part Number

UNO-3382G-474AE

UNO-3382G-4C3AE

UNO-3384G-474AE

Environment

Shock Protection

Operating, IEC 60068-2-27, 20G, half sine, 11ms

Operating, IEC 60068-2-27, 20G, half sine, 11ms

Operating, IEC 60068-2-27, 20G, half sine, 11ms

Vibration Protection

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)

Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)

Operating Temperature

0 ~ 55°C (32 ~ 131°F)

0 ~ 55°C (32 ~ 131°F)

0 ~ 55°C (32 ~ 131°F)

Relative Humidity

10 ~ 95% RH @ 40°C, non-condensing

10 ~ 95% RH @ 40°C, non-condensing

10 ~ 95% RH @ 40°C, non-condensing

Storage Temperature

-40 ~ 85°C (-40~185°F)

-40 ~ 85°C (-40~185°F)

-40 ~ 85°C (-40~185°F)

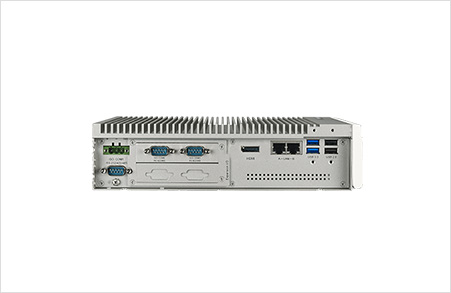

I/O Interface

Power Connector

1 x 3 Pins, Terminal Block

1 x 3 Pins, Terminal Block

1 x 3 Pins, Terminal Block

Displays

1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp

1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp

1 x HDMI, supports 1920 x 1200 @ 60Hz 24bpp, 1 x DP, supports 3200 x 2000 @ 60Hz 24bpp

LAN Ports

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet

Serial Ports

1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps

1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps

1 x RS-232/422/485, DB9, auto flow control, 50~115.2kbps

USB Port

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

4 x USB Ports (2 x USB2.0, 2 x USB3.0 compliant)

System Hardware

Expansion

2 Full-size mPCIe

2 Full-size mPCIe

2 Full-size mPCIe, 1x PCIex4, 1x PCI

Storage

1 x CFast slot, 2x built-in 2.5" SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)

1 x CFast slot, 2x built-in 2.5" SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)

1 x CFast slot, 2x built-in 2.5" SATA HDD brackets with support for RAID 0/1. (Compatible with 9.5mm height HDD)

Graphics Engine

Intel® HD Graphics

Intel® HD Graphics

Intel® HD Graphics

LED Indicators

LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2

LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2

LEDs for Power, Battery, COM (Tx/Rx) HDD and reserved x 2

Memory

Built-in 8GB DDR3L 1333 MHz

Built-in 4GB DDR3L 1333 MHz

Built-in 8GB DDR3L 1333 MHz

Processor

Intel® Core? i7-4650U 1.7GHz Haswell, 4MB L2

Intel® Celeron 2980U 1.6GHz, 2MB L2

Intel® Core? i7-4650U 1.7GHz Haswell, 4MB L2

System Chip

Integrated Intel 8 Series Chipset

Integrated Intel 8 Series Chipset

Integrated Intel 8 Series Chipset

Watchdog Timer

Programmable 255 levels timer interval, from 1 to 255 sec

Programmable 255 levels timer interval, from 1 to 255 sec

Programmable 255 levels timer interval, from 1 to 255 sec

BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

AMI UEFI 128Mbit Flash BIOS

General

OS Support

WIN7/8, WES7, WES10, Advantech Linux

WIN7/8, WES7, WES10, Advantech Linux

WIN7/8, WES7, WES10, Advantech Linux

Power Requirement

24VDC ± 20%

24VDC ± 20%

24VDC ± 20%

Power Consumption

45W (Typical), 65W (Max)

45W (Typical), 65W (Max)

45W (Typical), 75W (Max)

Weight

3.1 kg

3.1 kg

3.1 kg

Mounting

Book mount

Book mount

Book mount

Enclosure

Aluminum Housing

Aluminum Housing

Aluminum Housing

Form factor

Regular Size

Regular Size

Regular Size

Dimension(W x D x H)

65.2 x 254 x 207 mm

65.2 x 254 x 207 mm

103.2 x 254 x 207 mm (4.06" x 10" x 8.15")

Certifications

CE, FCC, UL

CE, FCC, UL

CE, FCC, UL
