Part Number

MIO-2361EW-S1A1

MIO-2361EW-S6A1

MIO-2361EW-S7A1

Processor

CPU

Intel Atom® x5-E3930 Processor

Intel Atom® x5-E3940 Processor

Intel Atom® x7-E3950 Processor

Core Number

2

4

4

Frequency

1.3 GHz

1.6 GHz

1.6 GHz

L2 Cache

2 MB

2 MB

2 MB

Max Turbo Frequency

1.8 GHz

1.8 GHz

2 MB

Chipset

Intel Atom SoC processor integrated

Intel Atom SoC processor integrated

Intel Atom SoC processor integrated

BIOS

AMI EFI 64 Mbit

AMI EFI 64 Mbit

AMI EFI 64 Mbit

Memory

Onboard Memory

4 GB on-board memory

4 GB on-board memory

4 GB on-board memory

Max. Capacity

8 GB

8 GB

8 GB

Display

Chipset

Intel® Atom SoC integrated

Intel® Atom SoC integrated

Intel® Atom SoC integrated

Graphic Engine

DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC

DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC

DirectX 12.0, OpenGL 4.3, OpenCL 2.0, HW Decode: MPEG2, H.264 (L5.2), VC-1, WMV9, VP8, JPEG/MJPEG, H.265 (HEVC), MVC

LVDS

48-bit LVDS up to 1920 x 1200 at 60Hz

48-bit LVDS up to 1920 x 1200 at 60Hz

48-bit LVDS up to 1920 x 1200 at 60Hz

HDMI

Up to 3840 x 2160 at 30Hz

Up to 3840 x 2160 at 30Hz

Up to 3840 x 2160 at 30Hz

Dual Display

HDMI+LVDS

HDMI+LVDS

CRT + LVDS

Ethernet

Speed

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

10/ 100/ 1000 Mbps

Controller

Intel® i210IT/i210AT

Intel® i210IT/i210AT

Intel® i210IT/i210AT

Connector

RJ45 on rear I/O

RJ45 on rear I/O

-

Audio

Chipset

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Realtek ALC888S, High Definition Audio (HD), Line-in, Line out, Mic-in

Watchdog Timer

65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer

65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer

65536 level timer interval, from 0~65535 sec, multi-level, multi-option watchdog timer

Storage

mSATA

1 x Full-size mSATA (*share with mPCIe slot)

1 x Full-size mSATA (*share with mPCIe slot)

1 x Full-size mSATA (*share with mPCIe slot)

SATA

1, up to 6Gb/s (600MB/s)

1, up to 6Gb/s (600MB/s)

1, up to 6Gb/s (600MB/s)

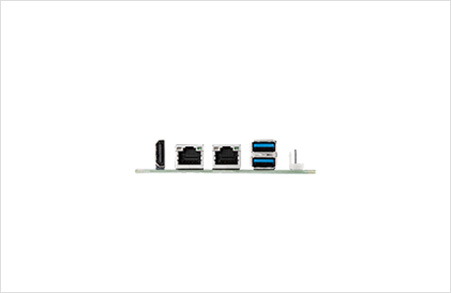

Rear I/O

Ethernet

2

2

2

HDMI

1

1

1

USB

2 x USB 3.0

2 x USB 3.0

2 x USB 3.0

DC Power Jack

1 (supported by request)

1 (supported by request)

1 (supported by request)

Internal I/O

USB

2 x USB 2.0

2 x USB 2.0

2 x USB 2.0

Serial

2 x RS-232/422/485 from COM1 & COM2 with auto-flow control (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

2 x RS-232/422/485 from COM1 & COM2 with auto-flow control (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

2 x RS-232/422/485 from COM1 & COM2 with auto-flow control (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV)

SMBus

1

1

1

GPIO

16-bit GPIO

16-bit GPIO

16-bit GPIO

Expansion

Mini PCIe

1 x Full size (default)

1 x Full size (default)

1 x Full size (default)

Power

Power Type

2V/24V power input

2V/24V power input

2V/24V power input

Power Supply Voltage

Vin: 12V (default) or 24V input, ± 10%

Vin: 12V (default) or 24V input, ± 10%

Vin: 12V (default) or 24V input, ± 10%

Power Consumption (Typical)

TBC

TBC

8.59 W (12V), 8.81 W (24V)

Power Consumption (Max)

TBC

TBC

26.27 W (12V), 26.51 W (24V)

Power Management

ACPI 3.0

ACPI 3.0

ACPI 3.0

Battery

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Lithium 3 V / 210 mAH

Environment

Operational Temperature

0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)

0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)

0 ~ 60 °C (32 ~ 140 °F), Extend: -40 ~ 85° C (-40 ~ 185° F)

Non-Operational Temperature

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

-40 ~ 85° C and 60° C @ 95% RH Non-Condensing

Physical

Dimension (mm)

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")

100 x 72 mm (3.9" x 2.8")
