Part Number

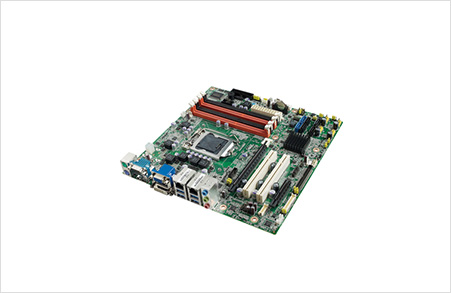

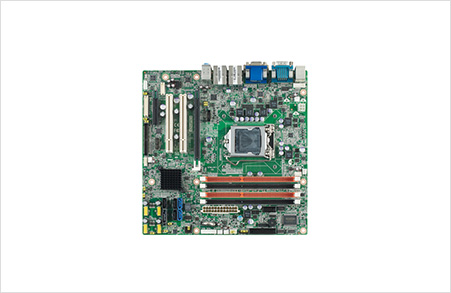

AIMB-582QG2-00A1E

Form Factor

Form Factor

Micro ATX

Processor

CPU

Intel Core i7-3770 / i7-2600 / i5-3550S / i5-2400 / i3-3220 / i3-2120 / Pentium G2120 / Pentium G850 / Celeron G540

CPU TDP

95W / 77W / 65W / 55W

Frequency

2.5GHz ~ 3.4 GHz

Core Number

43500

L3 Cache

2 ~ 8MB

BIOS

AMI EFI 64Mbit

Chipset

Intel Q77 PCH

Memory

Technology

DDR3 1333/1600 MHz

Max. Capacity

32 GB

ECC Support

No

Socket

4 x 240-pin DIMM

Display

Controller

Intel HD Graphics

Graphic Engine

DirectX 11, OpenCL1.1 and OpenGL 3.1 support

Graphic Memory

1GB maximum shared memory with 2GB and above system memory installed

VGA

Up to 2048 x 1563 @ 60Hz

LCD (TTL/LVDS/eDP)

LVDS: Dual channel 24-bit, up to 2560x1600 at 60 Hz

DDI (HDMI/DVI/DisplayPort)

DVI: 1920 x 1200 @ 60Hz

Multiple Display

Dual/ Triple

Expansion

PCI Express x 16

1

PCI Express x 4

1

PCI

2

SMBus

1

Ethernet

Controller

GbE1: Intel 82579LM GbE2: Intel 82583V

Speed

10/ 100/ 1000 Mbps

Connector

RJ45 x 2

Audio

Audio Interface

HD Audio

CODEC

Realtek ALC892, High Definition Audio (HD)

Connector

2 (Line out, Mic-in)

Watchdog Timer

WatchDog Timer

Yes

Storage

SATA

4 x SATAII (Max. Data Transfer Rate 300 MB/s)

RAID

Software RAID 0, 1, 5, 10

I/O

USB3.0

4

USB2.0

8

GPIO

8-bit GPIO

LPT

1

COM Port

6 ( 5 x RS232, 1 x RS232/ 422/ 485)

Keypad

1

TPM

Optional

Smart Fan

5

Power

Power Type

ATX

Connector

ATX24P

Power Consumption (Idle)

1.91A @ 5V / 0.27A @ 3.3V / 0.64A @ 12V / 0.16A @ 5Vsb / 0.14A @ -12V

Power Consumption (Full Load)

2.88A @ 5V / 1.06A @ 3.3V / 3.3A @12V / 0.36A @ 5Vsb / 0.01A @ -12V

Battery

Lithium 3 V / 200 mAh

Environment

Operational Temperature

0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing)

Non-Operational Temperature

-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing

Vibration Resistance

3.5 Grm (Non-Operation Mode)

Physical

Dimension (mm)

244 x 244 mm

Weight

1.2 kg (2.64 lb), weight of total package

Operating System

Microsoft Windows

Yes

Linux

Yes

SUSIAccess

Yes

Certification

EMC

CE, FCC
